ASRock B450M-HDV R4.0 MICRO ATX
b450m asrock
hot sales
recommandé
marque:ASROCK
rupture de stock

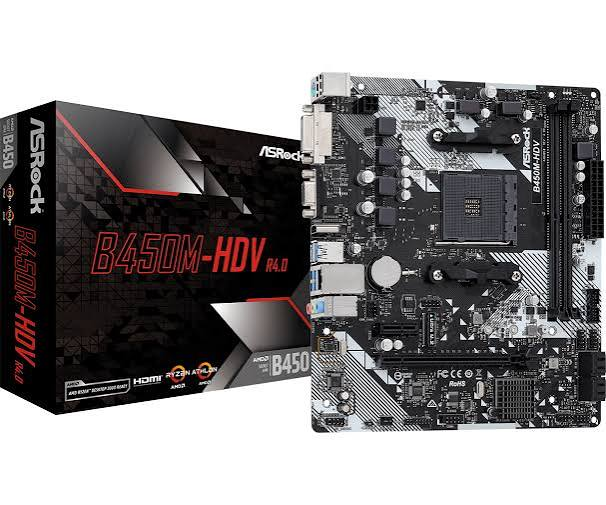

The ASRock B450M-HDVR4.0 motherboard based on the AMD B450 chipset is designed to support AMD Ryzen processors. It will allow the assembly of a desktop or multimedia configuration at an affordable price while embedding all the necessary features for a compact and powerful configuration.
N/A
Catégorie
Réseaux sociaux
Description
| GENERAL INFORMATION | Product name | ASRock B450M-HDV R4.0 |
| Brand | ASRockASRock | |
| Model | B450M-HDV R4.0 | |
| PROCESSOR | Processor support | AMD AM4 |
| Number of CPUs supported | 1 | |
| CHIPSET | Chipset | AMD B450 |
| MEMORY | Memory format | 2 X DIMM 288-pin (DDR4) |
| Memory Frequency(ies) | DDR4 2133 MHz | |
| DDR4 2400 MHz | ||
| DDR4 2666 MHz | ||
| DDR4 2933 MHz | ||
| DDR4 3200 MHz | ||
| Memory type | DDR4 | |
| Memory technology | Dual Channel | |
| Maximum RAM capacity per slot | 16 GB | |
| Maximum RAM capacity | 32 GB | |
| GRAPHIC | Integrated graphics controller | No |
| Compatible graphics core integrated in the CPU | Yes | |
| EXPANSION SLOTS | Graphic connector(s) | 1 X PCI Express 3.0 x16 |
| Number and Type of slots | 1 X PCI Express 2.0 x1 | |
| Multi-GPU type | None | |
| AUDIO | Audio Chipset | Realtek ALC887 |
| Number of audio channels | 8 | |
| NETWORK | Number of ports/Ethernet controler | Realtek RTL8111H |
| Network standard(s) | 10/100/1000 Mbps | |
| Wi-Fi | No | |
| STORAGE | RAID supported | Yes |
| Hard drives connectors | 1 X M.2 - PCI-E 3.0 x4 + SATA 6 Gb/s | |
| 4 X Serial ATA 6Gb/s (SATA Revision 3) | ||
| Number of M.2 slot(s) | 1 | |
| Supported RAID Modes | 0 | |
| 1 | ||
| 10 | ||
| CONNECTIVITY | Motherboard connector location | Standard connectors (on the motherboard) |
| Rear panel connectors | 1 X VGA (D-sub 15 Female) | |
| 1 X HDMI Female | ||
| 1 X DVI Female | ||
| 4 X USB 3.0 | ||
| 2 X USB 2.0 | ||
| 1 X RJ45 Female | ||
| 1 X MiniDin 6 Female (PS/2) | ||
| 3 X 3.5mm Jack Female Stereo | ||
| Additional connectors | 1 X TPM | |
| Front panel audio | ||
| 1 X +12V (Power supply P4) | ||
| 1 X ATX 24 Pin | ||
| 1 X Serial (RS-232) | ||
| 4 X Internal USB 2.0 | ||
| 2 X Internal USB 3.0 | ||
| PHYSICAL CHARACTERISTICS | Motherboard format | Micro ATX |
| Length | 230 mm | |
| Width | 201 mm | |
| EQUIPMENT | Advanced overclocking features | Yes |
| Use | Multimedia | |
| Office | ||
| LED | No |
