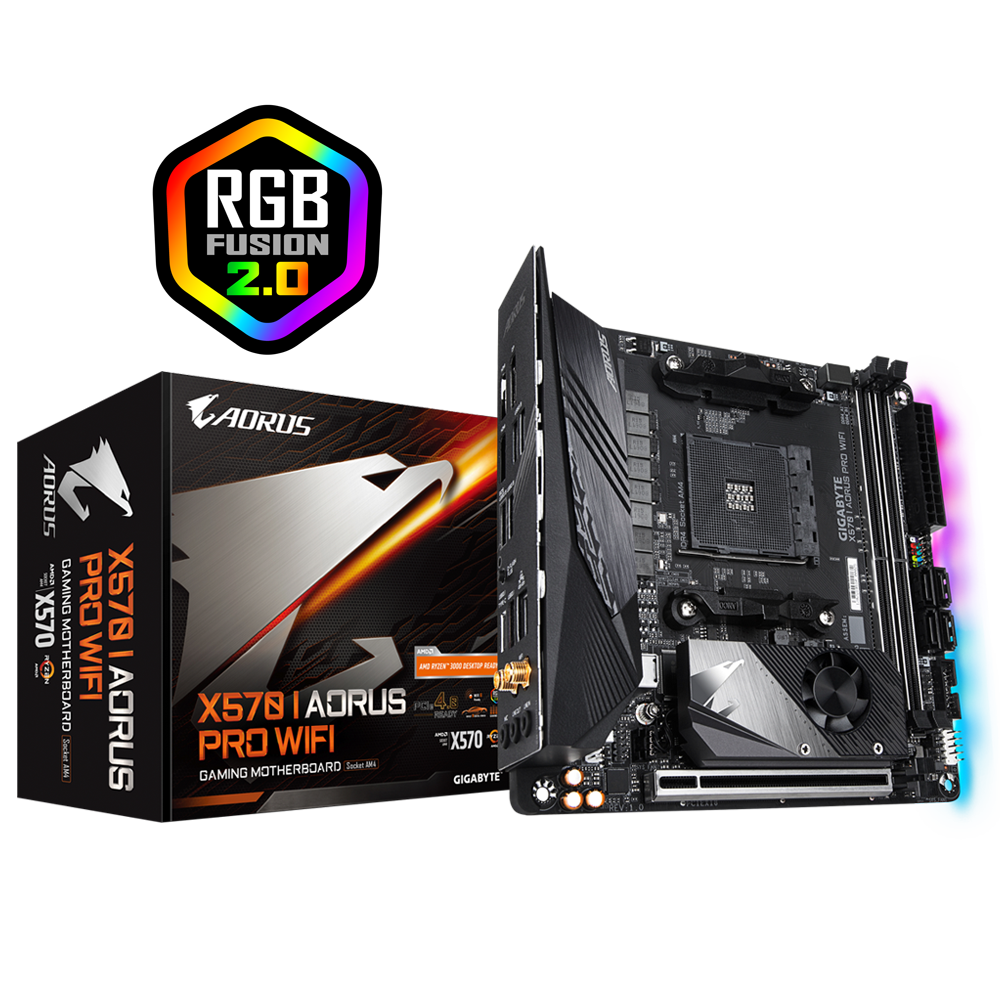

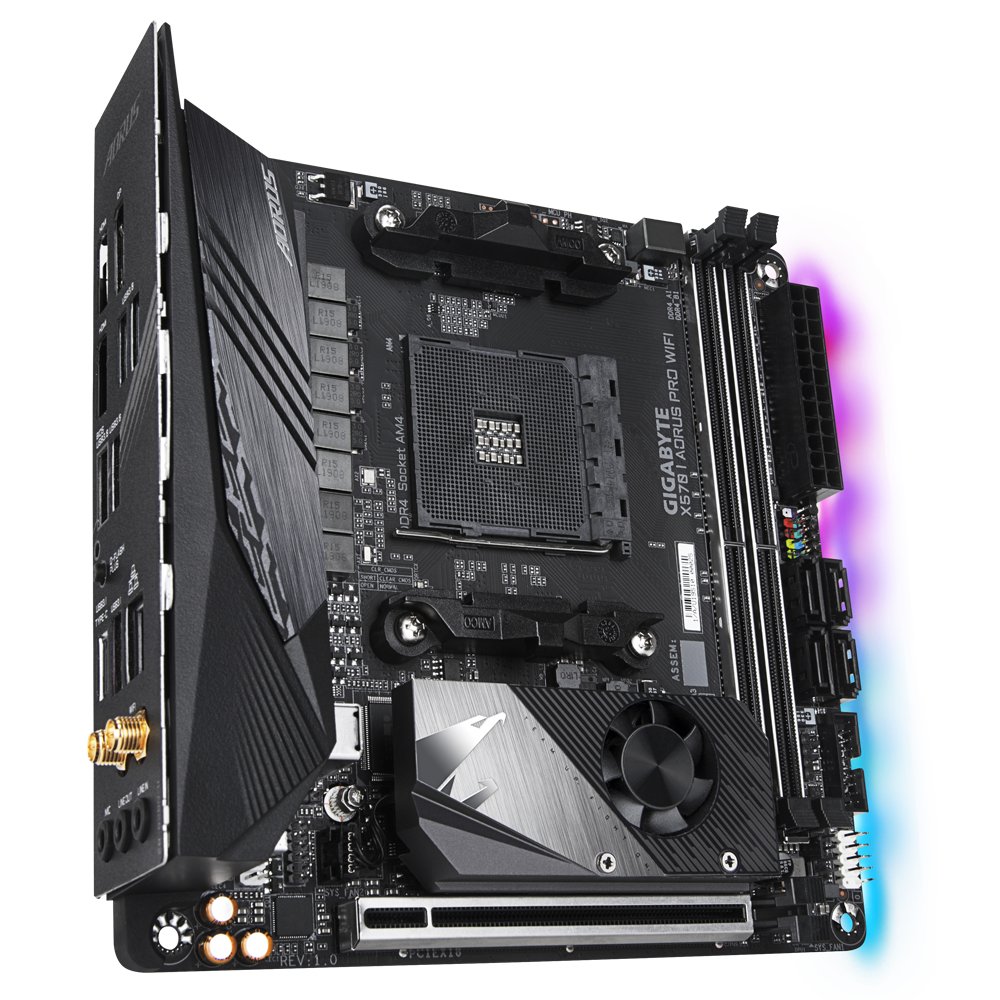

Gigabyte X570 I AORUS PRO WIFI MICRO ATX
X570-I
Utilisé
hot sales
recommandé
marque:AORUS GIGABYTE
The Gigabyte X570 I AORUS PRO WIFI motherboard will be perfect for a high-end Gaming configuration in a mini PC. Designed for 2nd and 3rd generation AMD Ryzen processors on socket AMD AM4, it supports up to 64 GB DDR4, graphics cards with PCI-Express 4.0 and also hard drives and SSDs in SATA (6 Gbit/s) and M.2 (SATA and PCIe 4.0 x4) format . The Gigabyte X570 I AORUS PRO WIFI motherboard also features the latest Gigabyte software and RGB Fusion 2.0 technology.
34 900 DA
Quantité
Catégorie
Réseaux sociaux
Description
| GENERAL INFORMATION | Product name | Gigabyte X570 I AORUS PRO WIFI |
| Brand | GigabyteGigabyte | |
| Model | GIGCMPX57IAPW | |
| PROCESSOR | Processor support | AMD AM4 |
| Number of CPUs supported | 1 | |
| CHIPSET | Chipset | AMD X570 |
| MEMORY | Memory format | 2 X DIMM 288-pin (DDR4) |
| Memory Frequency(ies) | DDR4 4400 MHz | |
| Memory type | DDR4 | |
| Memory technology | Dual Channel | |
| Maximum RAM capacity per slot | 32 GB | |
| Maximum RAM capacity | 64 GB | |
| GRAPHIC | Integrated graphics controller | No |
| Compatible graphics core integrated in the CPU | Yes | |
| EXPANSION SLOTS | Graphic connector(s) | 1 X PCI Express 4.0 x16 |
| Number and Type of slots | None | |
| Multi-GPU type | None | |
| AUDIO | Audio Chipset | Realtek ALC1220-VB |
| Number of audio channels | 8 | |
| NETWORK | Number of ports/Ethernet controler | 1 X Integrated Intel - 10/100/1000 Mbps |
| Network standard(s) | Wi-Fi 6 AX | |
| 10/100/1000 Mbps | ||
| Bluetooth 5.0 | ||
| STORAGE | RAID supported | Yes |
| Hard drives connectors | 2 X M.2 - PCI-E 4.0 x4 + SATA 6 Gb/s | |
| 4 X Serial ATA 6Gb/s (SATA Revision 3) | ||
| Number of M.2 slot(s) | 2 | |
| Supported RAID Modes | 10 | |
| 1 |
