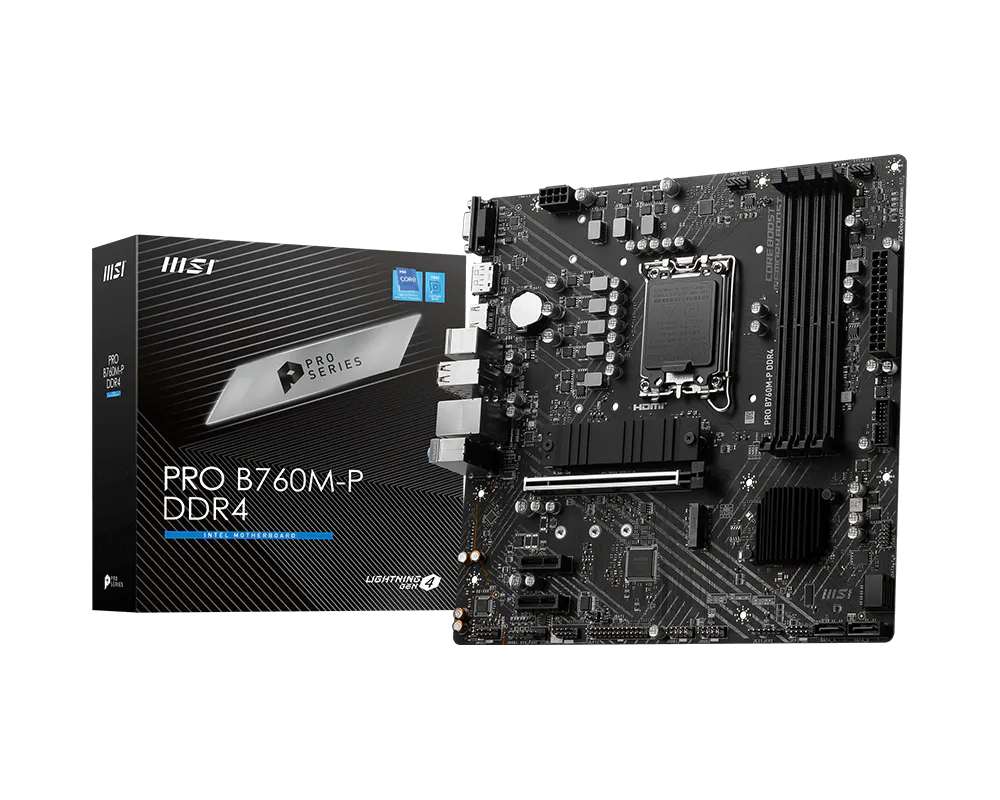

MSI B760M-P PRO DDR4 MICRO ATX
b760mp msi
hot sales
recommended
brand:MSI
stock out
The MSI PRO B760M-P DDR4 motherboard designed for 12th and 13th generation Intel Core hybrid processors is ideal for assembling a powerful and cost effective system.
N/A
category
social_media
description
| GENERAL INFORMATION | Product name | MSI PRO B760M-P DDR4 |
| Brand | MSIMSI | |
| Model | PRO B760M-P DDR4 | |
| PROCESSOR | Processor support | Intel 1700 |
| Number of CPUs supported | 1 | |
| CHIPSET | Chipset | Intel B760 Express |
| MEMORY | Memory format | 4 X DIMM 288-pin (DDR4) |
| Memory Frequency(ies) | DDR4 4800 MHz | |
| DDR4 2133 MHz | ||
| DDR4 2400 MHz | ||
| DDR4 2666 MHz | ||
| DDR4 2800 MHz | ||
| DDR4 2933 MHz | ||
| DDR4 3000 MHz | ||
| DDR4 3200 MHz | ||
| DDR4 3333 MHz | ||
| DDR4 3400 MHz | ||
| DDR4 3466 MHz | ||
| DDR4 3600 MHz | ||
| DDR4 3733 MHz | ||
| DDR4 4000 MHz | ||
| DDR4 4266 MHz | ||
| DDR4 4400 MHz | ||
| DDR4 4600 MHz | ||
| Memory type | DDR4 | |
| Memory technology | Dual Channel | |
| Maximum RAM capacity per slot | 32 GB | |
| Maximum RAM capacity | 128 GB | |
| GRAPHIC | Integrated graphics controller | No |
| Compatible graphics core integrated in the CPU | Yes | |
| EXPANSION SLOTS | Graphic connector(s) | 1 X PCI Express 4.0 x16 |
| Number and Type of slots | 2 X PCI Express 4.0 x1 | |
| AUDIO | Audio Chipset | Integrated |
| Number of audio channels | 8 | |
| NETWORK | Number of ports/Ethernet controler | Realtek RTL8111H |
| Network standard(s) | 1 X 10/100/1000 Mbps | |
| Wi-Fi | No | |
| STORAGE | RAID supported | Yes |
| Hard drives connectors | 2 X M.2 - PCI-E 4.0 x4 | |
| 4 X Serial ATA 6Gb/s (SATA Revision 3) | ||
| Number of M.2 slot(s) | 2 | |
| Supported RAID Modes | 10 | |
| 5 | ||
| 1 | ||
| 0 | ||
| CONNECTIVITY | Motherboard connector location | Standard connectors (on the motherboard) |
| Rear panel connectors | 4 X USB 2.0 | |
| 1 X USB 3.0 | ||
| 2 X MiniDin 6 Female (PS/2) | ||
| 1 X HDMI Female | ||
| 1 X DisplayPort Female | ||
| 3 X 3.5mm Jack Female Stereo | ||
| 1 X RJ45 Female |
